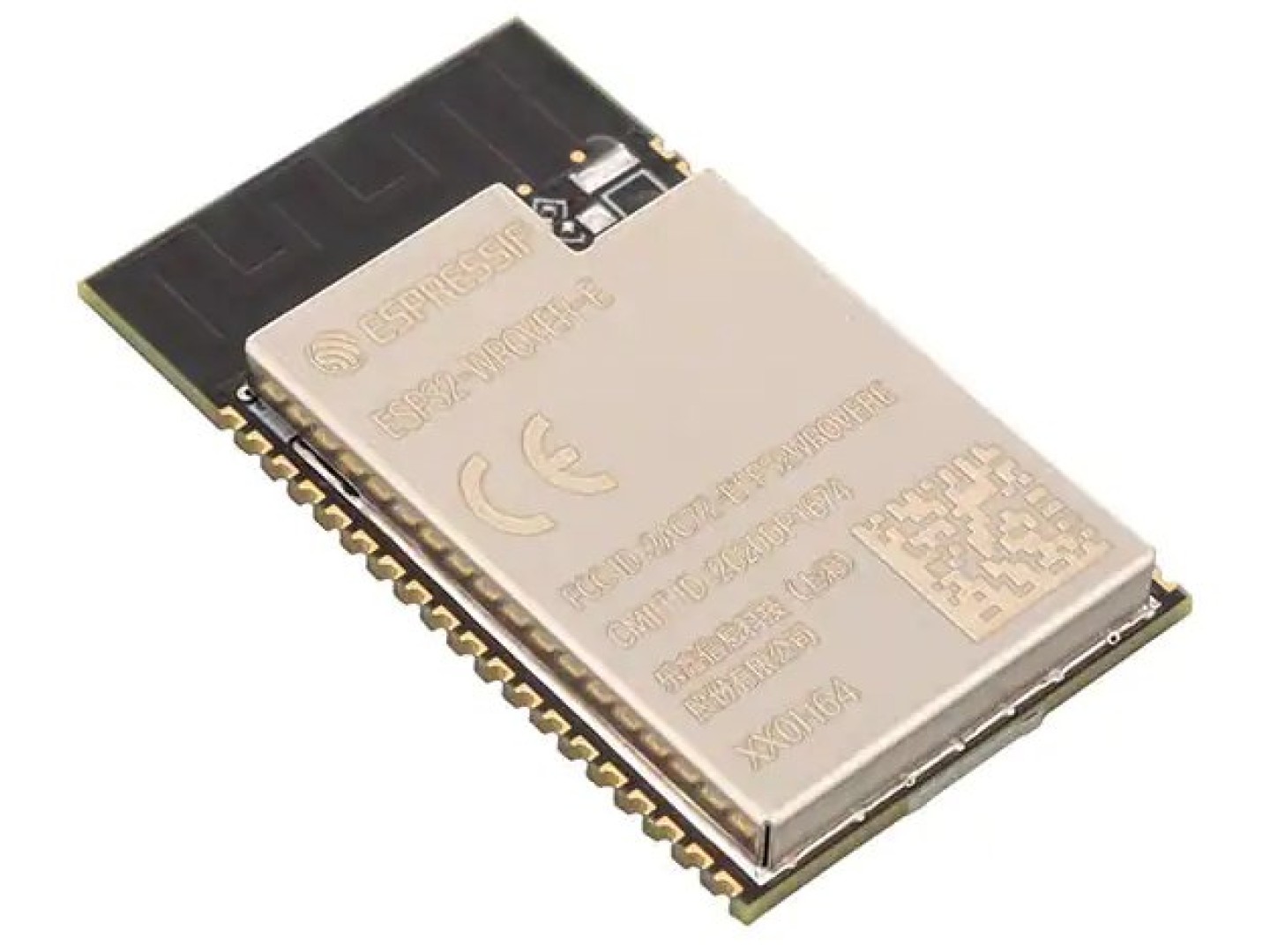

ESP32-WROVER-E, 16MB, 8MB RAM, WiFi & Bluetooth, PCB Antenna

The ESP32-WROVER-E is a WiFi and Bluetooth module using the popular Espressif ESP32 chip. The pads on the module have a 1.27mm spacing. This is a original module, manufactured by Espressif. The ESP32 WROVER module is a slightly larger version of the ESP32 WROOM, with the addition of PSRAM. To view the PDF Datasheet, click here.see this page: 99tech.com.au/m/esp32-wrover-e_ie_datasheet.pdf Features Manufacturers Part Number: ESP32-WROVER-E-N16R8 Manufacturer: Espressif CPU: Xtensa® 32-bit LX6 Dua-core processor, up to 600 DMIPS Speed: 80 MHz to 240 MHz Chip: ESP32-D0WD-V3 Flash: 16 MByte(128Mbit) SPI PSRAM: 8 MByte(64Mbit) SPI ROM: 448 KByte SRAM: 536 KByte WiFi Protocol: 802.11 b/g/n (802.11n up to 150 Mbps) WiFi Freqency: 2412 ~ 2484 MHz Bluetooth Protocol: v4.2 BR/EDR and Bluetooth Antenna: PCB Antenna Package: 38pin SMD Module Size: 18 x 31.4 x 3.3 mm  (±0.2mm) Operating Temperature: -40°C ~ 85°C Supply Voltage: 3.0V~3.6V Package Includes 1 x ESP32-WROVER Module (ESP32-WROVER-E-N16R8) [mx_insert-post-ebay slug="ebay-t-default"] SKU: ESP3-040 Categories: ESP32 & ESP8266, WiFi Modules Tags: bluetooth, esp32, wifi, wireless
