ESP32-WROOM-32E Board, WiFi, Bluetooth, USB Type C, PCB Antenna

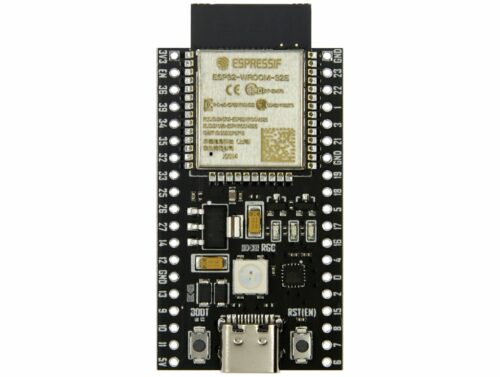

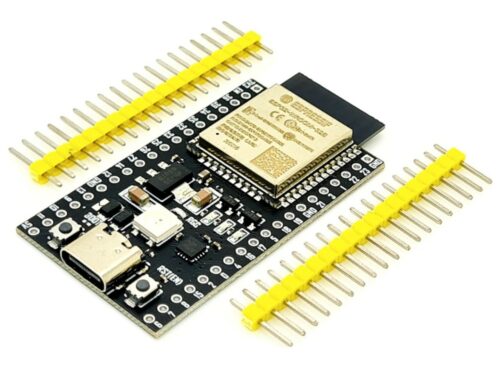

This board is based on the popular Espressif ESP32 chip, and has WiFi & Bluetooth. It is assembled with an original Espressif ESP32-WROOM-32E module. PLEASE NOTE: The pin headers are yellow(as shown in photos) or red. A USB to serial interface is implemented using the CH343 chip. It also has the higher power SOT-223 linear regulator, which has a higher power rating than the SOT-23 type used on some other modules. Software can be developed using many different platforms, including Arduino. There is a RGB WS2812 LED connected to IO16. It has a Red, Green and Blue LED that are individually addressable. There are plenty of examples on the internet showing how to drive a WS2812 LED. For example, Google "WS2812 Arduino" or "WS2812 c code". Features 2.4 GHz Wi-Fi: IEEE 802.11 b/g/n-compliant Bluetooth and Bluetooth LE: Bluetooth 5, Bluetooth mesh 4 MByte(32Mbit) SPI Flash 448 KByte ROM 512 KByte SRAM PCB Antenna USB Type-C connector Virtual USB port provided by CH343 for debugging and firmware upgrade Reset and User/Firmware Buttons RGB WS2812 User LED Power LED Assembled with ESP32-WROOM-32E module Compact size of 48.3 x 28 Supply Voltage: 5V via USB Circuit Voltage: 3.0 to 3.6V Circuit Operation Specs and Docs PDF SchematicsPDF Schematics:99tech.com.au/m/esp32-yd_schematics.pdf Package Includes 1 x ESP32 Module with ESP32-WROOM-32E 2 x Loose 19 pin, 2.54mm pin headers [mx_insert-post-ebay slug="ebay-t-default"] SKU: ESP3-047 Categories: ESP32 & ESP8266, WiFi Modules Tags: bluetooth, esp32, wifi, wireless
